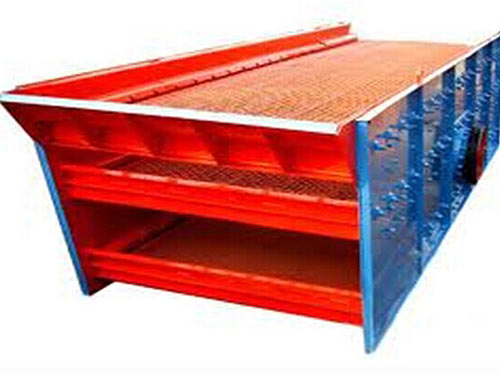

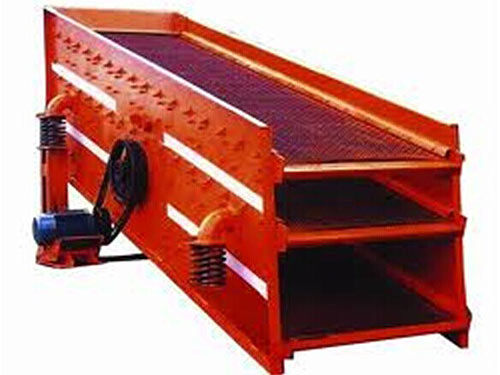

1)Brief introduction of circular vibrating screen

Circular vibrating screen is the new kind of high efficiency multi-lavers vibrating screen,and its vibrating track is circle and it makes circular motions.YK series mainly consists of the eccentric block  vibrator,screen box,motor,and supportive device.Moreover,it is mainly applied in coal dressing,mining,construction,power and chemical inductries,etc.

2) Features of circular vibrating screen

1.high screening efficiency

2.high processing capacity

3.long service life

4.low electric consumption and noise

5.stable structure and strong exciting force

6.handy maintenance and safety

3)Working principle of circular vibrating screen

The motor spread to vibrator through the V belt, because the rotation of eccentric shaft causing vibration, making the screen deck do circular tracking movement, thereby make mineral rolling and vibrating on the surface of screen. The large on the surface of the screen, the size of the material less than screen pore will fall under the screen to achieve the purpose of screening.

Features of Vibrating Screen

long streamline, many specifications and clear screening for different specification. It features credible structure, strong exciting force, high screening efficiency, low vibrating noise.

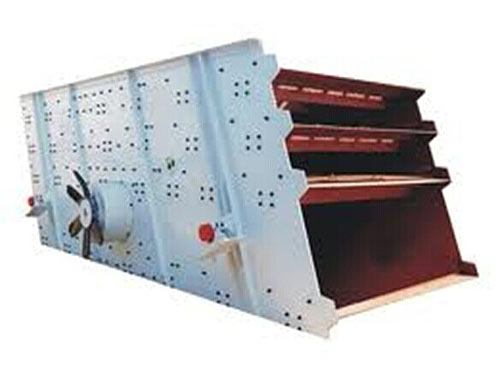

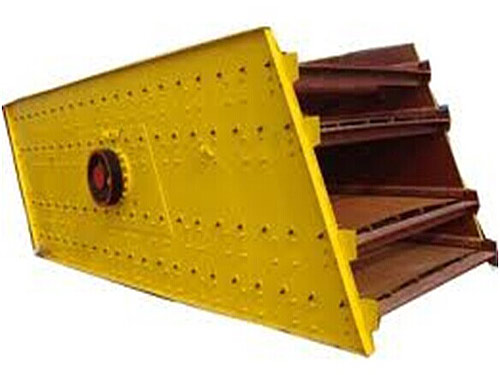

Brief Introduction

YZS circle vibrating screen is a kind of high efficient new screening equipment. Because of its trajectory approximate to round, it is called circle vibrating screen. Shunky's YZS circle vibrating screen is highly praised by customers from all trades because its consumption energy is up to national standard which is of advanced level at home and abroad. YZS Circular Vibrating Screen adopts eccentric shaft vibration exciter and partial block helps to adjust amplitude. The advanced frame structure increase the life of equipment and decrease the impact force of the base. It is a multi-level and high efficiency vibrating screen. This kind of screen is of long streamline, many specifications and clear screening for different specification. It features credible structure, strong exciting force, high screening efficiency, low vibrating noise, convenient maintenance, safe operation, etc.

Working Principle

It uses common motor to drive vibrator, and makes the screen along with direction of exciting force to do periodic movement to and fro. The material makes circular movement on the sieve to realize screening.

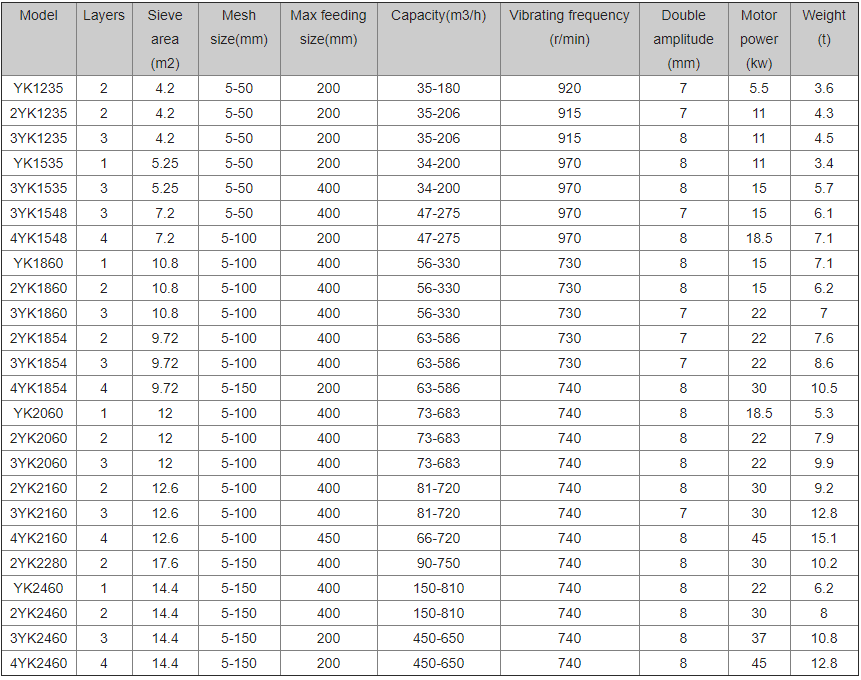

Technical Data
